Architecture / Concept & model study
Modular shelter study.

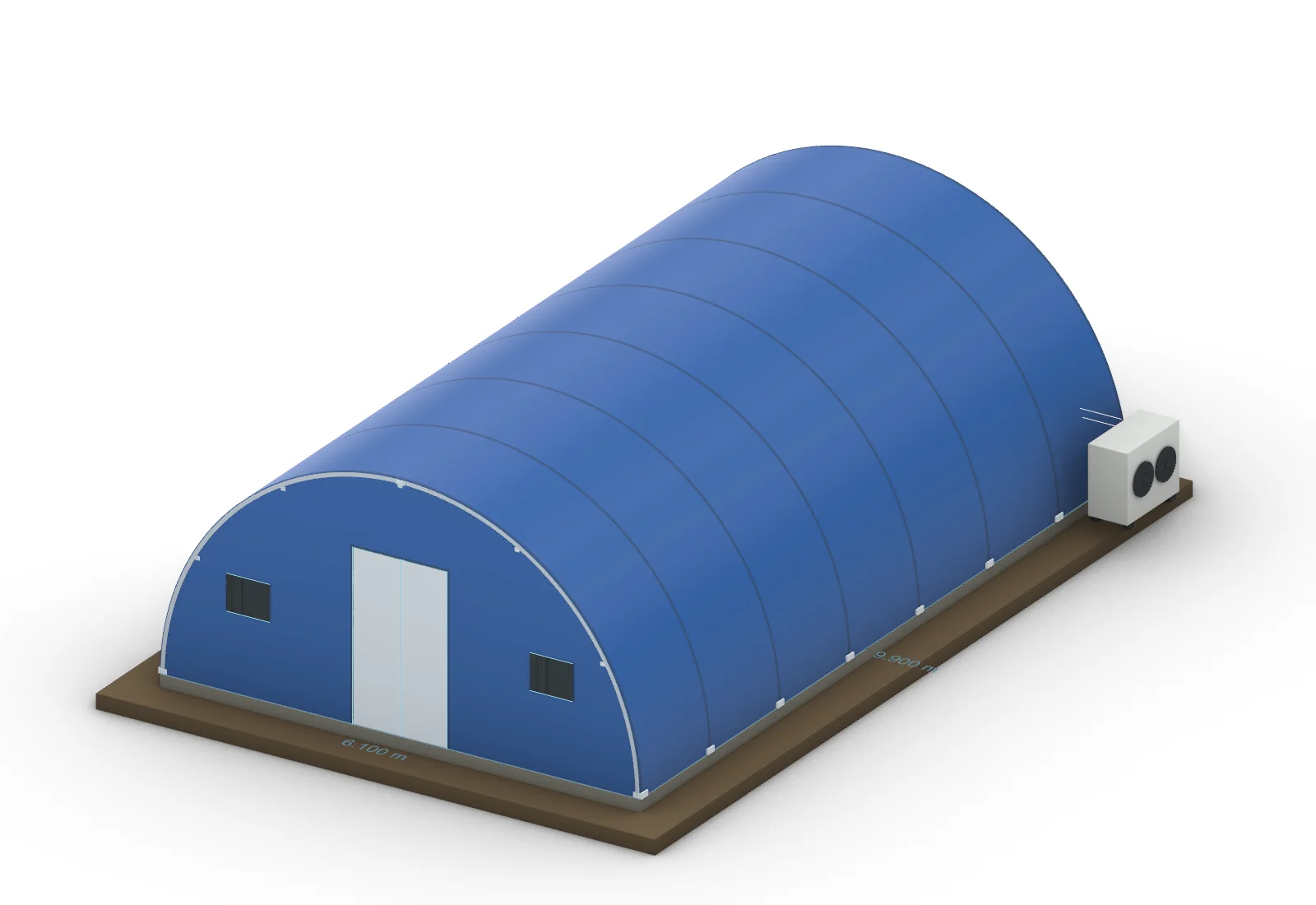

An arched shelter concept studied from the external enclosure to sleeping spaces and privacy partitions.
01 / The design question
How can one simple enclosure accommodate individual sleeping spaces and shared circulation?
02 / The approach
- Read the shelter first as an enclosing volume, then as a series of interior zones.

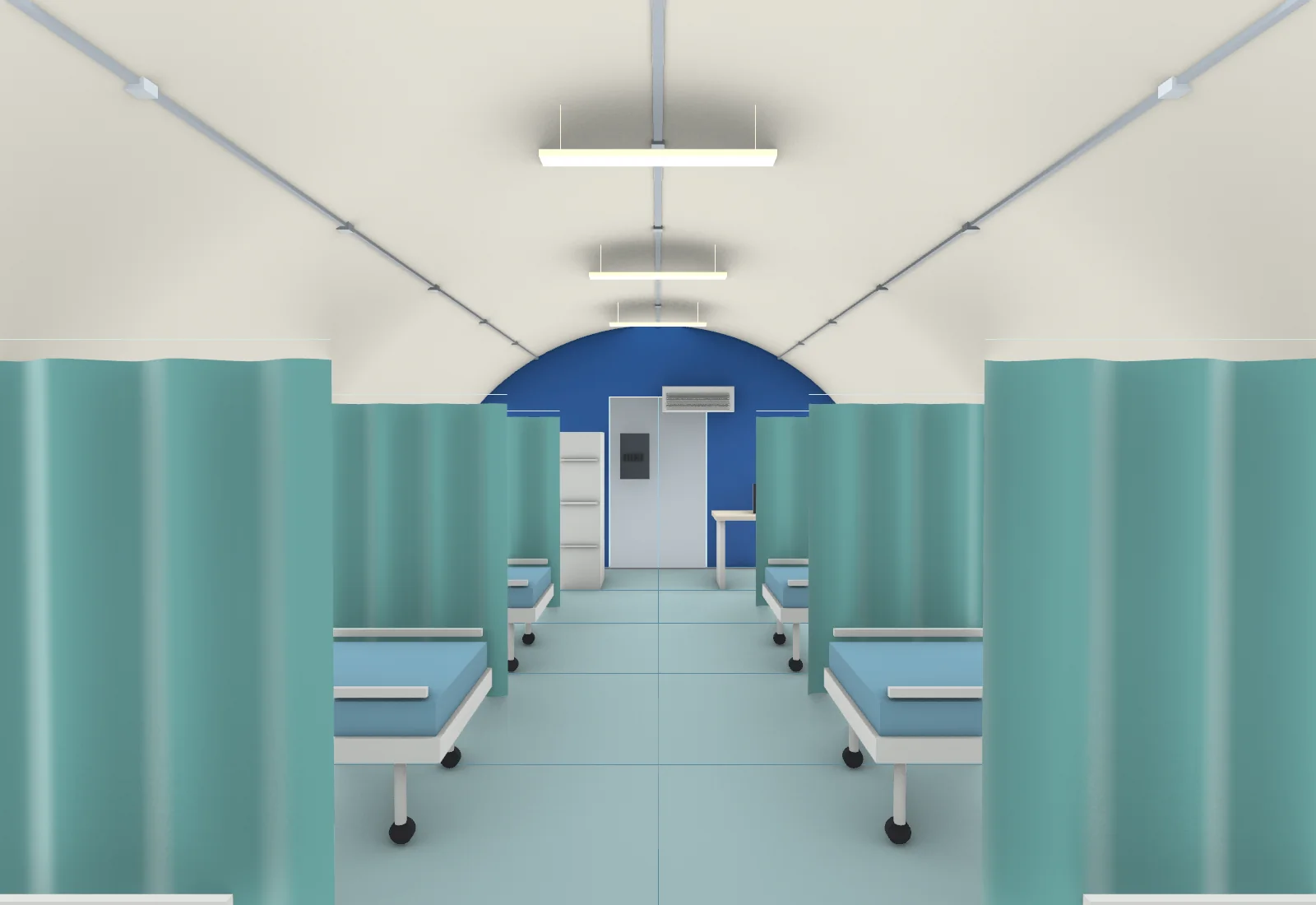

- Use partitions to distinguish sleeping spaces while retaining a shared circulation route.
- Present exterior and interior model views together to connect footprint, enclosure and occupancy.
Explore the geometry
Step inside the model.
Browse all client model previews ↗
Rotate, zoom and inspect the source geometry. Use the perspective, top, front, side and layer controls to explore the project.
03 / Deliverables
- Exterior model visualization
- Interior arrangement study
- Concept presentation views
What the work makes clear
The study makes the relationship between a repeatable enclosure and the spaces inside it visible at an early stage.
