Technical / Model coordination study

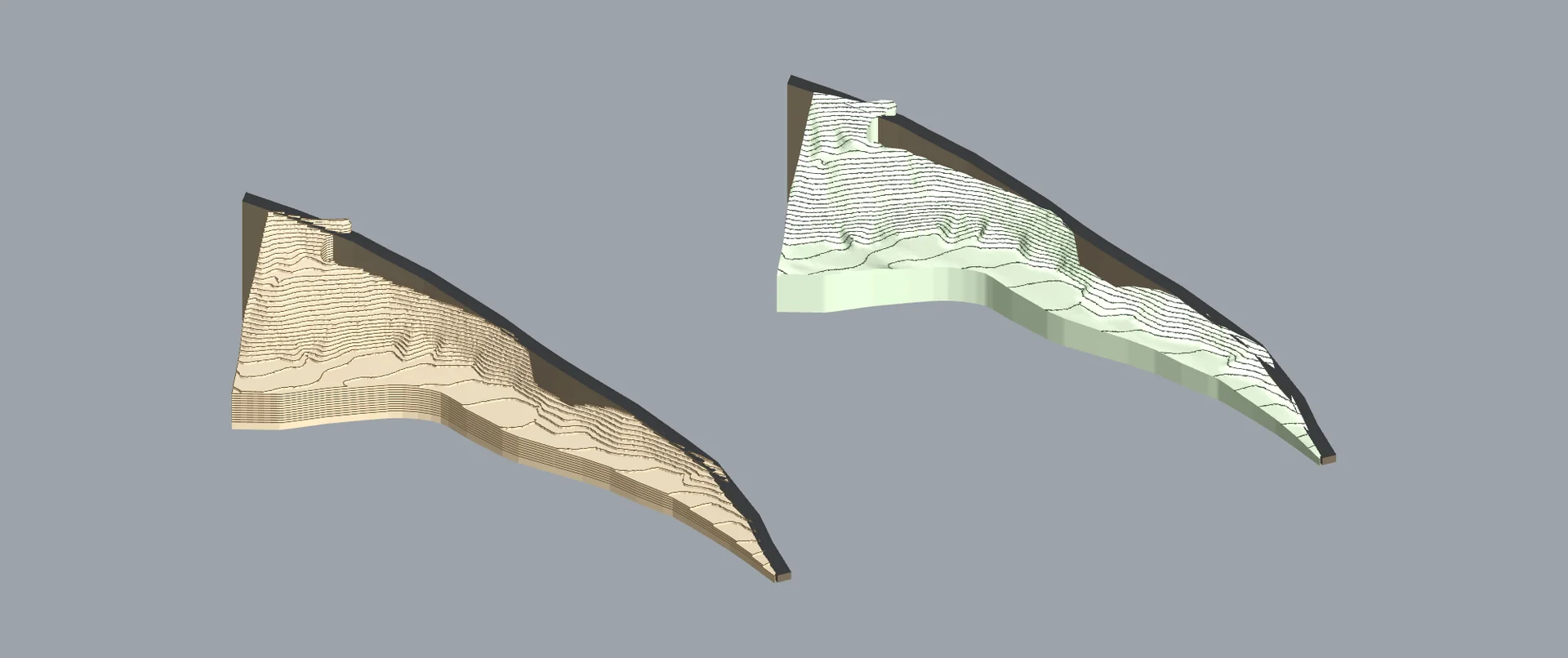

Road meets terrain.
A road and terrain model study comparing the route with its surrounding landform.
01 / The design question
How can the relationship between an alignment and the existing terrain be made easier to review?
02 / The approach
- Bring the route and surrounding landform into a shared model view.
- Use the comparison to communicate continuity, transitions and the relationship to the broader site.
- Keep the model presentation distinct from detailed civil-engineering verification.
Explore the geometry
Step inside the model.
Browse all client model previews ↗
Rotate, zoom and inspect the source geometry. Use the perspective, top, front, side and layer controls to explore the project.
03 / Deliverables
- Road and terrain model view
- Comparative model presentation
What the work makes clear
The model provides a visual basis for discussing the route in context, with engineering decisions left to the appropriate detailed review.
